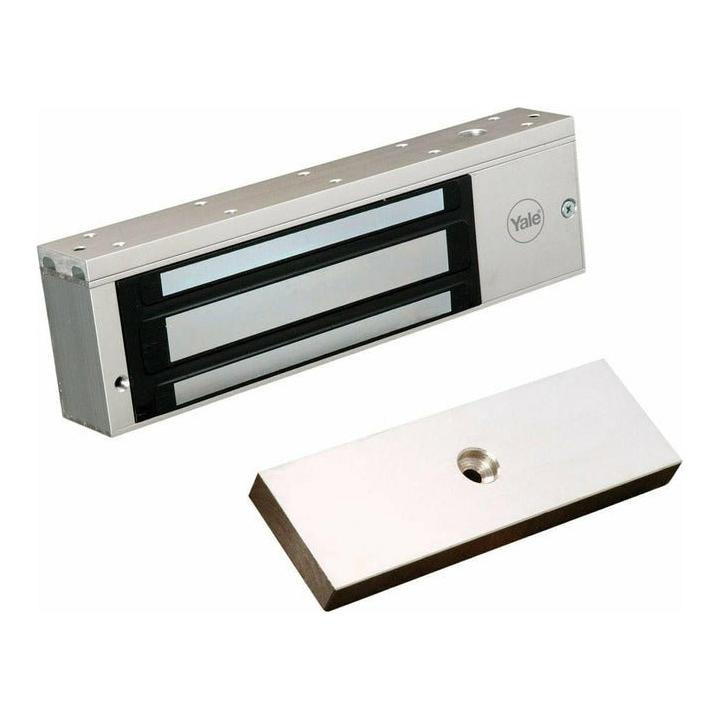

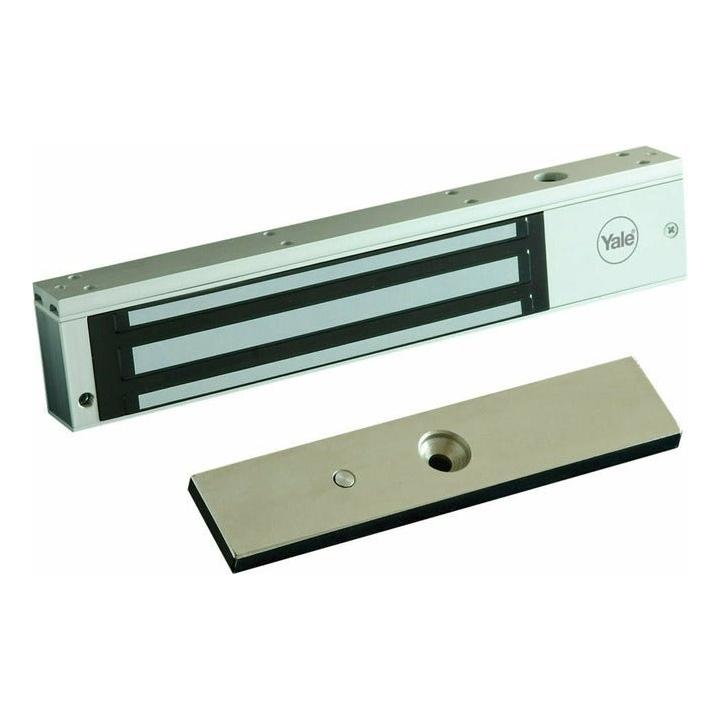

Surface Mount maglock
SKU: MAG600
R 1,61000
Tax included.
Shipping calculated at checkout.
Electromagnetic locks are an auxiliary locking mechanism with no moving parts that can bind or wear out for long life trouble free operation. This low energy consumption option with a 600lbs (270kg), or 1200lbs (540kg) holding force is suitable for access controlled medium duty indoor applications.
Features
- Electroless nickel plated armature plate for zero residual magnetism
- Fail-safe
- Monitored lock status with relay output
- Low energy consumption
- ZL bracket available for inward swinging doors
- CE compliant
Specifications
- 12/24Vdc selectable (power supply not included)
- Anodized aluminium housing
- Holding force: up to 600lbs (270kg)
- Current drain: 480mA ±10% @ 12Vdc / 240mA ±10% @ 24Vdc
Dimensions:
W: L: H:
