Emergency Exit Push Bar with Vertical Bolts — Single Door

Emergency Exit Push Bar with Vertical Bolts — Single Door | BS EN 1125 Certified | Fire Rated

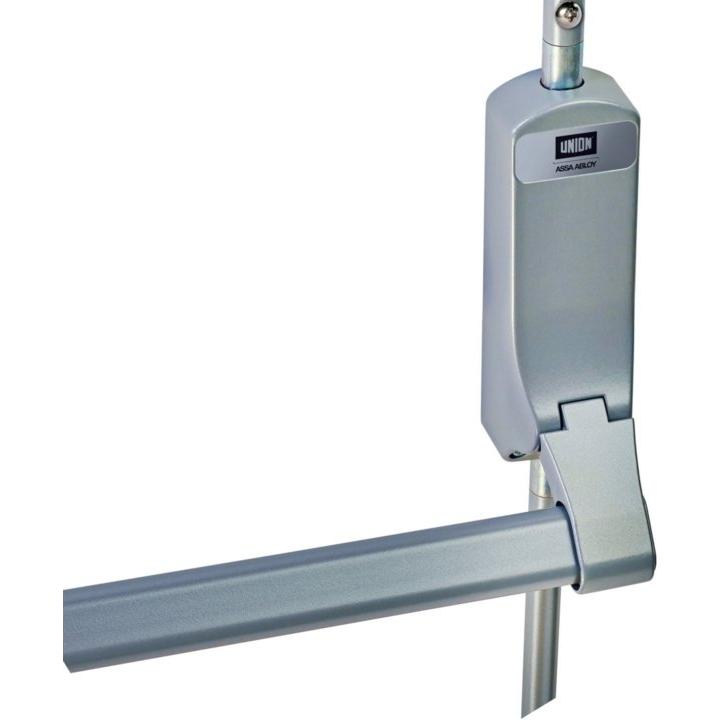

A BS EN 1125 certified panic exit device with vertical rod bolts for single door applications. The push bar mechanism allows immediate exit under panic conditions — a single push on the bar retracts the vertical bolts simultaneously, releasing the door without the need for handles, keys, or prior knowledge of the mechanism.

Required by SANS 10400 Part T and SANS 1253 for emergency exit doors in commercial, institutional, and public assembly buildings — this device meets both the South African and European certification standards for panic hardware.

Product Specifications:

• Certification: BS EN 1125 — panic exit hardware standard
• Fire Rating: Yes — fire-rated assembly
• Push Bar Length: 1300mm (adjustable/customisable)
• Locking Mechanism: Vertical panic bolts (top and bottom)
• Door Width: Up to 1100mm
• Door Thickness: 35–55mm
• Door Types: Timber and aluminium doors
• Configuration: Single door
• Guarantee: 10 years
• Body Dimensions: 172mm depth
• Sold: Per unit with vertical rods and all fixing hardware included

Key Features:

• BS EN 1125 certified — meets European panic exit hardware standard
• Supports SANS 10400 Part T and SANS 1253 compliance — required for commercial emergency exit doors in South Africa
• Fire-rated assembly — suitable for fire door applications
• Vertical bolt mechanism — simultaneous top and bottom bolt retraction with a single push
• 1300mm adjustable push bar — suits doors up to 1100mm wide
• Suits 35–55mm door thickness — compatible with standard timber and aluminium commercial doors
• 10-year guarantee — specification-grade durability
• Single push operation — no handles, keys, or training required for emergency egress

What are vertical bolts? Unlike horizontal latch panic bars, this device uses vertical rods that extend into the floor and head frame simultaneously — providing a more secure multi-point locking solution while still allowing immediate single-push emergency exit.

Ideal for: Commercial buildings, schools, hospitals, shopping centres, warehouses, sports facilities, places of public assembly, and any building requiring a certified panic exit device on a single emergency exit door.
