Soft Closing Cupboard Hinge — Full Overlay

Soft Closing Cupboard Hinge — Full Overlay | 35mm Cup | 3D Adjustable

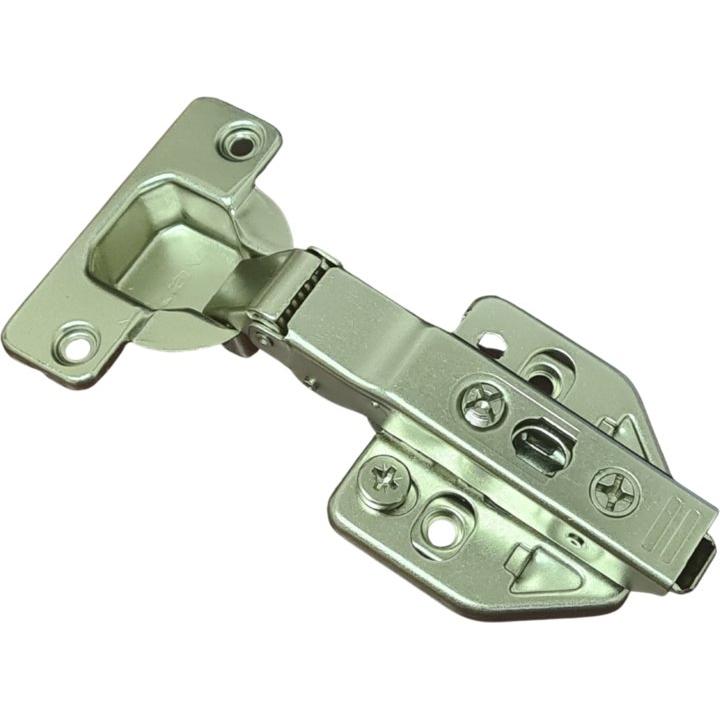

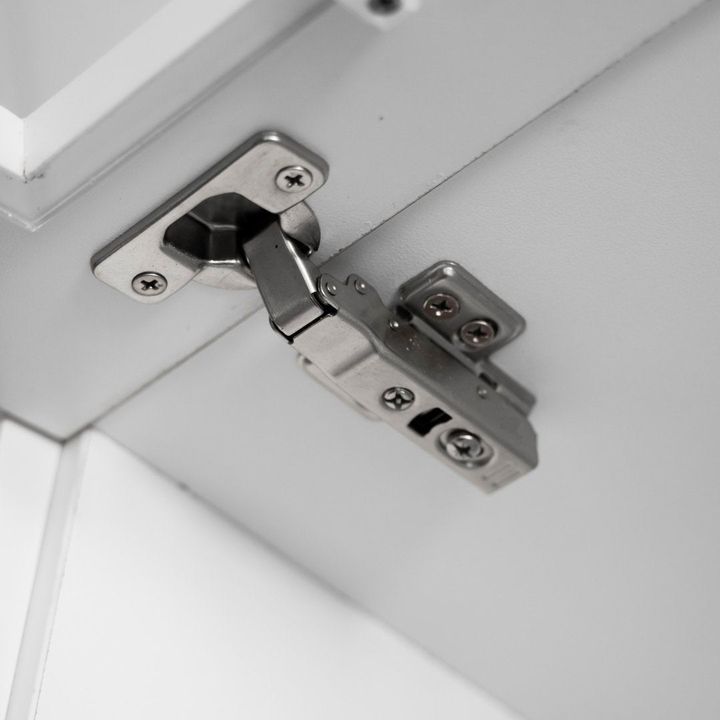

A soft-close concealed cupboard hinge for full overlay cabinet doors — the door fully covers the cabinet frame when closed, with no frame visible around the door edge. The 35mm cup diameter suits standard pre-drilled cabinet doors, and the 3D adjustable mechanism allows precise up/down, left/right, and in/out alignment after installation.

The soft-close damper controls the final 15–20° of door travel, pulling the door quietly closed without slamming — eliminating the most common complaint in kitchen and bathroom cabinetry.

Sold per hinge — order the quantity you need (typically 2 hinges per door for doors up to 1000mm height, 3 for taller doors).

Product Specifications:

• Hinge Type: Concealed soft-close — full overlay
• Cup Diameter: 35mm
• Door Overlay: Full overlay — door fully covers cabinet frame
• Door Thickness: 16–22mm
• Adjustment: 3D adjustable — height, depth, and lateral
• Fixing Holes: 3 fixing holes per hinge plate
• Soft-Close: Yes — built-in damper
• Sold: Per hinge (single) — order quantity required

Key Features:

• 35mm cup — fits standard pre-drilled cabinet doors (industry standard cup size)
• Full overlay — door fully covers cabinet frame, no frame visible when closed
• Soft-close damper — quiet, controlled closure, eliminates door slamming
• 3D adjustable — precise alignment on all three axes after installation
• 16–22mm door thickness — suits standard MDF, chipboard, and timber cabinet doors
• 3 fixing holes — enhanced stability vs standard 2-hole hinge plates
• Sold per hinge — order exactly the quantity needed

How many hinges do I need?

• Doors up to 1000mm height — 2 hinges per door
• Doors 1000–1500mm height — 3 hinges per door
• Heavy or wide doors — add an additional hinge for extra support

Full overlay vs half overlay — which do I need?

• Full overlay (this hinge) — the door completely covers the cabinet frame; used where each door has its own dedicated cabinet carcass
• Half overlay — the door covers only half the frame; used where two doors share a central cabinet divider

Ideal for: Kitchen cabinets, bathroom vanities, bedroom wardrobes, laundry cupboards, and any cabinetry application requiring a standard 35mm soft-close concealed hinge on full overlay doors.
